Conference System Main Unit

Description

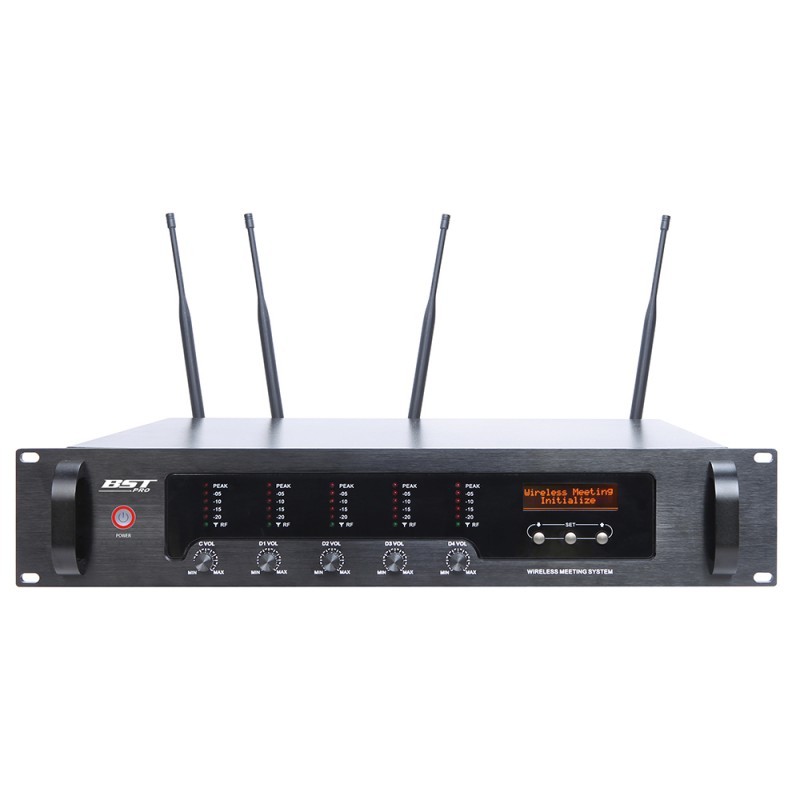

The conference system HT-2288 is the perfect solution for a mobile or fixed conference system where the use of cables is quite complicated. By combining several receivers (up to 16), this system can control up to 256 desk top microphones. By adding a video processor (optional), the video auto-tracking function will be activated (i.e. the camera will move automatically to the person who is talking).

L'impianto per conferenze HT-2288 è la soluzione perfetta per un impianto per conferenze mobile o fisso in cui l'uso di cavi rappresenta un problema. Grazie alla combinazione di diversi ricevitori (fino a 16), questo sistema è in grado di controllare fino a 256 microfoni da tavolo. Aggiungendo un video processore (opzionale), verrà attivata la funzione video di tracciamento automatico (ovvero la telecamera si sposterà automaticamente in funzione del parlante).

Le système de conférence HT-2288 est la solution parfaite pour une conférence mobile ou pour une installation fixe où l'utilisation de câbles est assez compliquée. En combinant plusieurs récepteurs (jusqu'à 16 récepteurs maximum), ce système peut contrôler jusqu'à 256 pupitres. En connectant un processeur vidéo (en option), vous activerez la fonction auto-tracking vidéo (calage automatique de la caméra sur la personne qui parle).

Tech Card

• The system can control up to 256 wireless desk microphones
• Up to 5 desk microphones (1 chairman and 4 delegates can talk at the same time)
• Up to 16 systems (zones) can be used simultaneously
• Level control for each channel
• Vumeter on every channel
• No PC required
• LCD display
• Operating mode : FIFO ( 1/2/3/4 ), limit ( 1/2/3/4 ) and chairman only
• Audio outputs : 1x balanced ( XLR ) + 1x unbalanced ( Jack )

Dimensions	488x88x340mm (19??/2U)
Weight	7kg
